Liquid Ring Vacuum Pumps
Backed by a rich industry experience, we are one of the most reputed manufacturers and suppliers of Liquid Ring Vacuum Pumps. Our range includes Liquid Ring Vacuum Pumps - P2LV Series (Two Stage), PLVS Series (Single Stage), PLV Series (SLM –Maneklal Type) PLR Series (Nash equivalent) and PLVM Series (Mono block). These pumps are manufactured by our skilled professionals using high grade materials and are in accordance with international quality standards. Available at industry leading prices, our products are widely known for their high performance, lower consumption of power, high capacity and superb suction performance.
P2LV SERIES (Double Stage):
The new generation ‘PRIME’ P2LV Series of Liquid ring Vacuum Pumps are two stage pumps designed to handle suction volumes upto 800 m³ /hr in the vacuum range to 35 mm Hg abs. They are ideal for general purpose applications in Pharma, chemical, food and most process industries as well as all those applications where versatile and rugged vacuum raising units are required.
P2LV Series (Double Stage):
Suction Capacity: 50 m3/hr -800 m3/hr
Power Consumption: 3 HP to 40 HP
Max. Vacuum: 730 mm Hg @ Sea Level

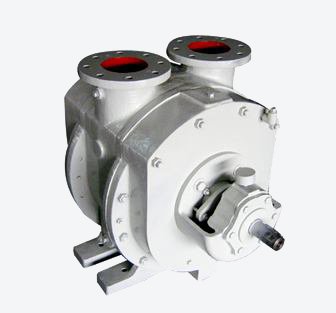

PLVS SERIES (Single Stage):
These are single stage Liquid Ring Vacuum Pumps with features similar to those of P2LV Series but able to develop an ultimate suction pressure upto 50 mm Hg Abs only and hence are used for most low vacuum application . These also offer very easy maintenance by virtue of a simpler design requiring no balls on the control plates, unlike some other designs.
PLVS Series (Single Stage):
Suction Capacity: 50 m3/hr - 800 m3/hr
Power Consumption: 3 HP to 40 HP
Max. Vacuum: 710 mm Hg @ Sea Level

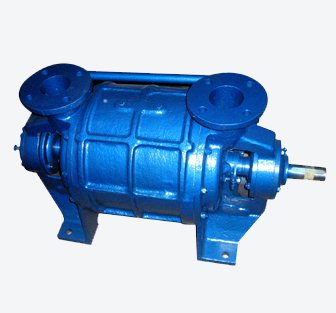

PLR Series (Nash Equivalent):
PRIME ´PLR´ Series Vacuum Pumps and compressors are rotary machines which are designed to handle suction volumes upto 3600 m³ /hr in the vacuum range to 50 mm Hg abs. They are ideal for general purpose applications in Mineral Benefication, Coal Washeries, Textile industry, Cement industry, Paper industry, Sugar industry, Steel Plants, Thermal & Atomic Power Plants. Fertilizer Plants as well as all those applications where versatile and rugged vacuum raising units are required.
The unit works as a Liquid Ring Compressor if the inlet is open to atmosphere and outlet connected to a closed system through a receiver.
PLR Series (Nash Equivalent):
Suction Capacity: 600 m3/hr – 3,600 m3/hr
Power Consumption: 20 HP to 125 HP
Max. Vacuum: 710 mm Hg @ Sea Level
PRIME PLR Series Vacuum Pumps are available in following combination of materials:
- Heads, Body, Cones in close grained specially alloyed wear resistant Cast Iron in S.G. iron and Shaft in Carbon Steel.
- Heads in Cast iron cladded with SS plates; Body & Cones in SS and Shaft in Carbon Steel.
These pumps are of cone port type. L-type Cone is recommended for a vacuum level up to 300mmHg & M-type upto 500mmHG, H-type for above 500 Hg Of vacuum is provided to suit different operating conditions
PLV SERIES (Single Stage):
PRIME Liquid ring vacuum pumps and compressors are sturdy by construction and long lasting by design. They can ensure trouble free running as there is only one rotating part which does not make any contact. They can handle moist as well as aggressive gasses and vapors.
PLV Series (SLM- MANEKLAL TYPE)
Suction Capacity: 50 m3/hr - 1080 m3/hr
Power Consumption: 3 HP to 40 HP
Max. Vacuum: 710 mm Hg @ Sea Level
PLVM SERIES (Mono-Block):
Power Consumption: 1 HP to 3 HP
Max. Vacuum: 710 mm Hg @ Sea Level
Features of Prime Liquid Ring Vacuum Pumps:
Prime Engineering manufactured Liquid Ring Vacuum pumps have several outstanding improvements like reduced service water requirements, improved efficiency, low noise levels, extreme ease maintenance and even more rugged construction to suit every application.
They can be supplied partly or entirely in a wide choice of materials such as SS 304, SS 316, Cast Steel, SG Iron etc.
Mechanical seals can be provided as an option. Every PRIME Pump is performance tested prior to shipment.
-
Applications of Prime Liquid Ring Vacuum Pumps:
- Vacuum distillation
- Vacuum filtration
- Vacuum transfer
- Evacuation
- Drying resins & paints
- Textile processing
- Priming pumps
- Paper Web draining & many other applications.
